Click the button below to download your measurement sheets!

Once you finish taking your measurements, please enter them below and submit.

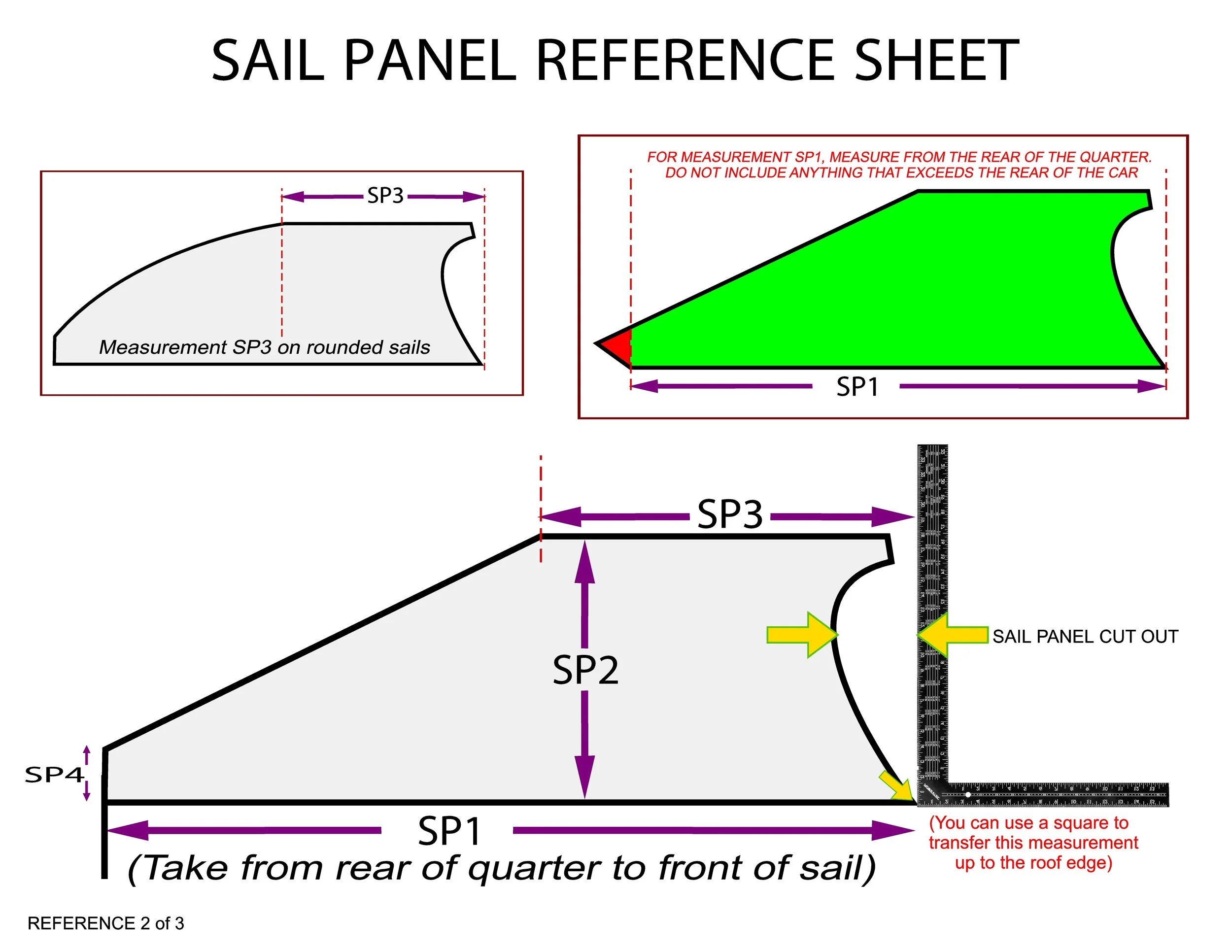

Diagram of sail panel reference sheet showing measurements for SP1, SP2, SP3, and SP4 on different sail shapes with instructions and color-coded sections.

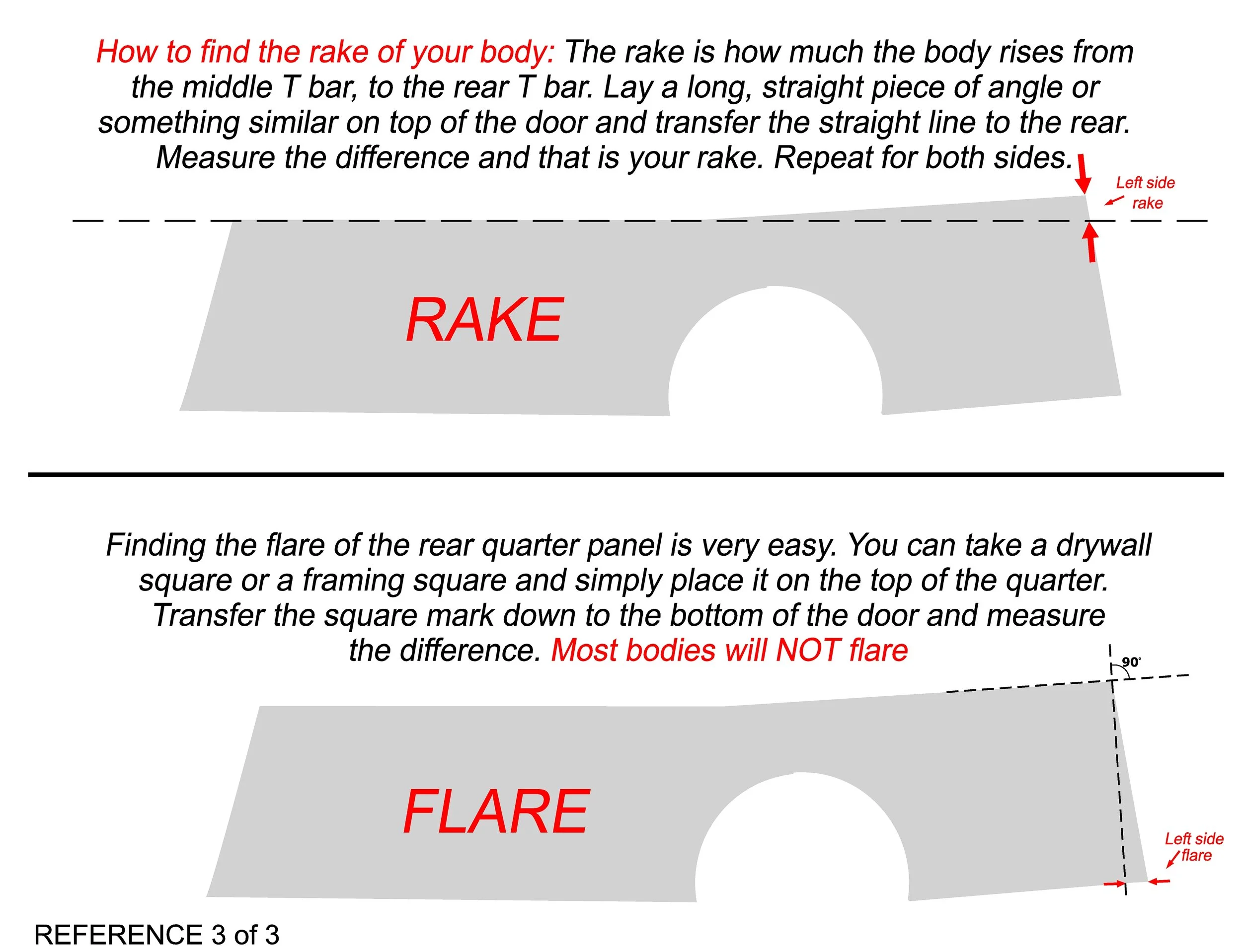

A diagram explaining how to find the rake and flare of a car's body. The top part shows a gray car roof with a dashed line indicating the rake, which is the angle of the roof slope. Red arrows show the rake from the middle to the rear T bar, with instructions on measuring the difference to determine the rake. The bottom part illustrates how to find the flare of the rear quarter panel by placing a square on the top of the quarter and transferring the mark down to measure the flare, emphasizing most bodies will not flare.
Modified Measurement Sheets Download

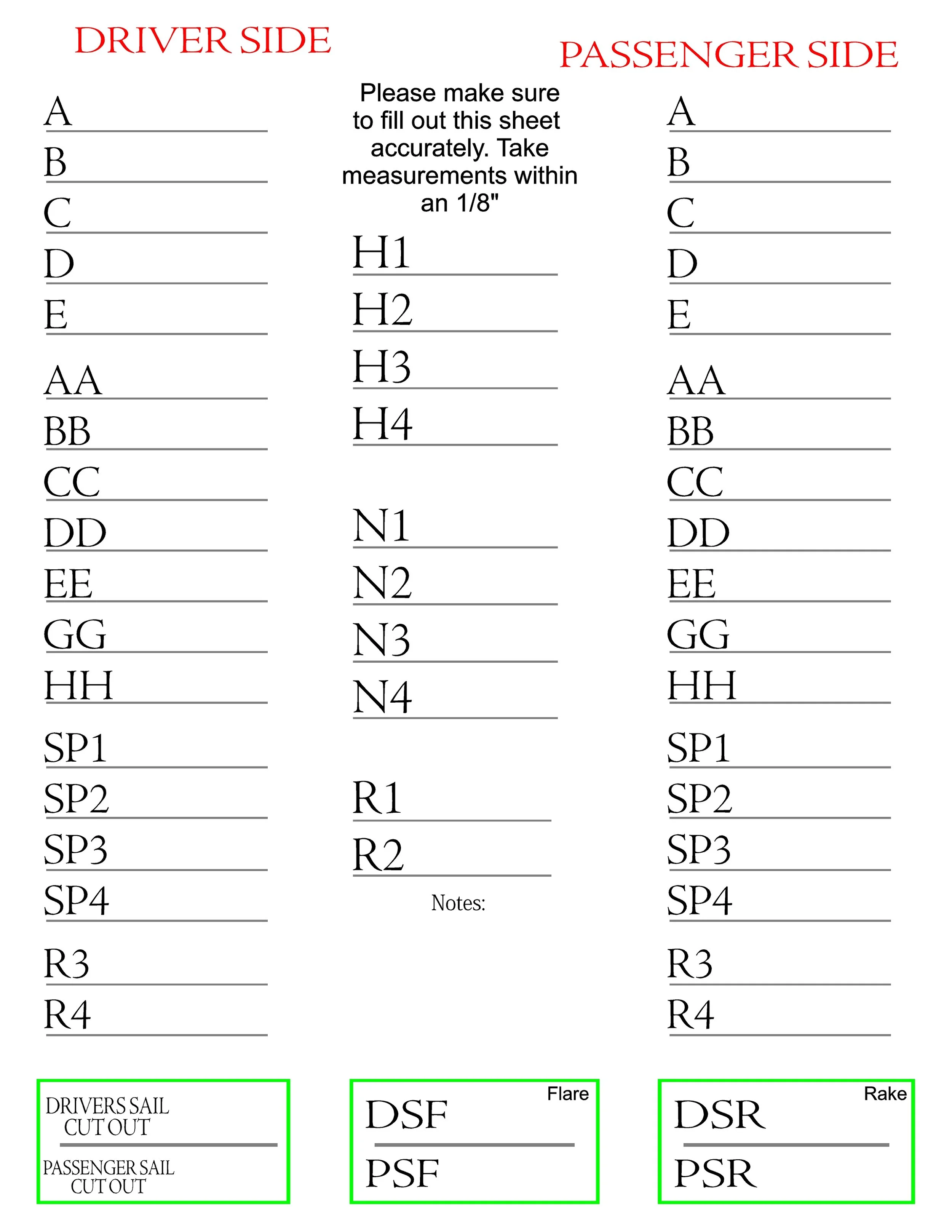

A sailing sheet with columns for driver and passenger side measurements, including labels like A through HH, with additional sections for sail cutouts, DSF and DSR, and notes.

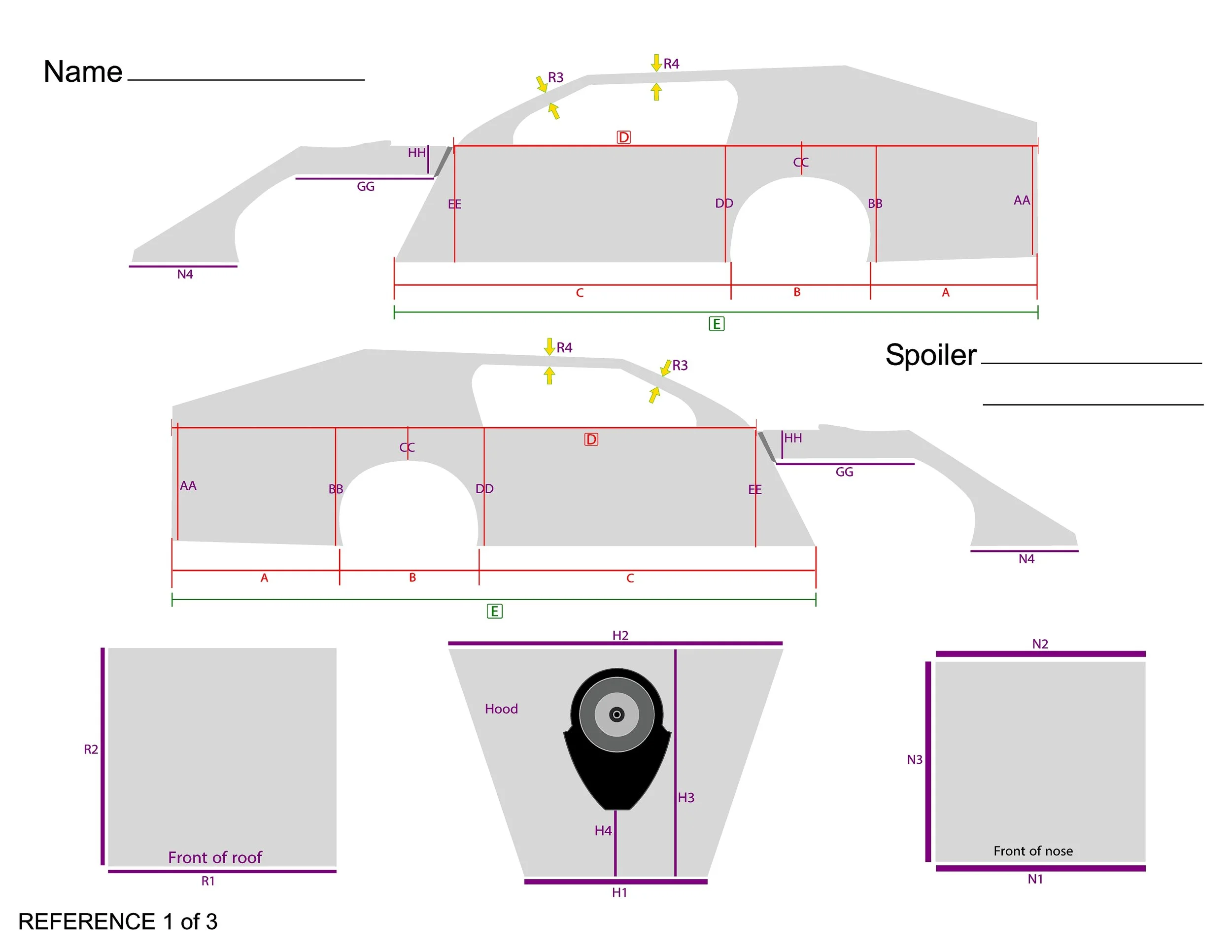

Diagram of car body parts with measurements, labels, and section views, including front of roof, hood, and front of nose.

Download here - Hold down and save image or download from my Dropbox from the link below
